Name: Anti-corrosion and Customized Facade Joint for Facade Support System
Brand: Hebei Jingliang Aluminum Alloy Products Co., Ltd
SKU: JL-T-1811
Availability: InStock

En casa > productos > Sistema de apoyo de revestimiento >

Anti-corrosion and Customized Facade Joint for Facade Support System

anti-corrosion facade joint

customized facade support system

facade joint with warranty

Lugar de origen:

Porcelana

Nombre de la marca:

Jingliang

Certificación:

ISO

Número de modelo:

JL-T-1811

Contacta con nosotros

Petición Una cita

Anti-corrosion and Customized Facade Joint for Facade Support System

Detalles del producto

Material:

Aluminio 6063,6061.6005, personalizado

Superficie:

Acabado de fábrica, anodizado, revestimiento.

Modelo:

JL-T-1811

Solicitud:

Fachada de terracota

Instalación:

Fácil

Garantía:

10 años

Resaltar:

anti-corrosion facade joint

customized facade support system

facade joint with warranty

Pago y términos de envío

Cantidad de orden mínima

200 piezas

Precio

Negociable

Detalles de empaquetado

Envasado de papel

Tiempo de entrega

15 días laborables

Condiciones de pago

LC, T/T

Capacidad de la fuente

20000 por 15 días laborables

PRODUCTOS RELACIONADOS

Soporte anticorrosivo y personalizado para sistema de soporte de fachada

Consiga el mejor precio

OEM y soporte de metal de fácil instalación para el sistema de soporte de fachada

Consiga el mejor precio

Soporte anticorrosivo y personalizado para sistema de soporte de fachada

Consiga el mejor precio

Sistema de soporte de fachada con soporte de aluminio anticorrosivo y de fácil instalación

Consiga el mejor precio

Contacta con nosotros

+8618522900527

info@hbjllzp.com

Contacta ahora

Descripción del producto

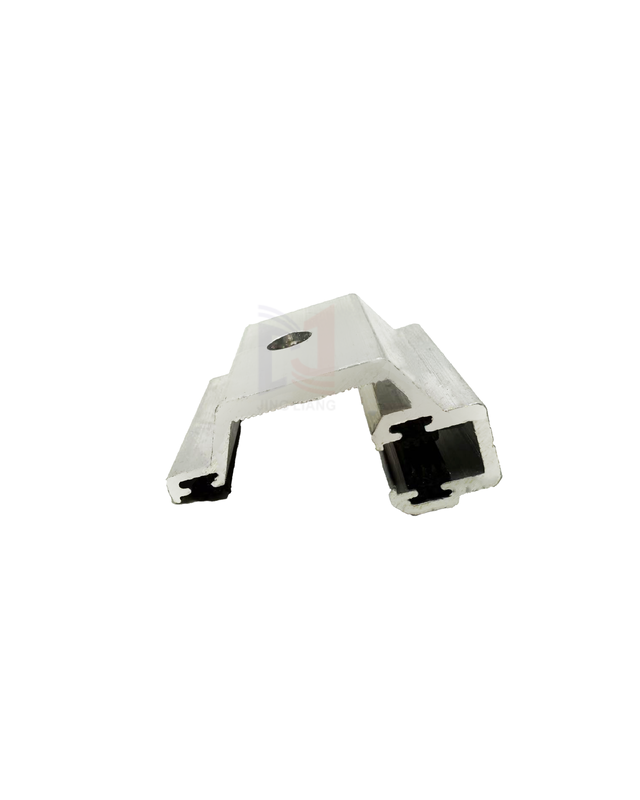

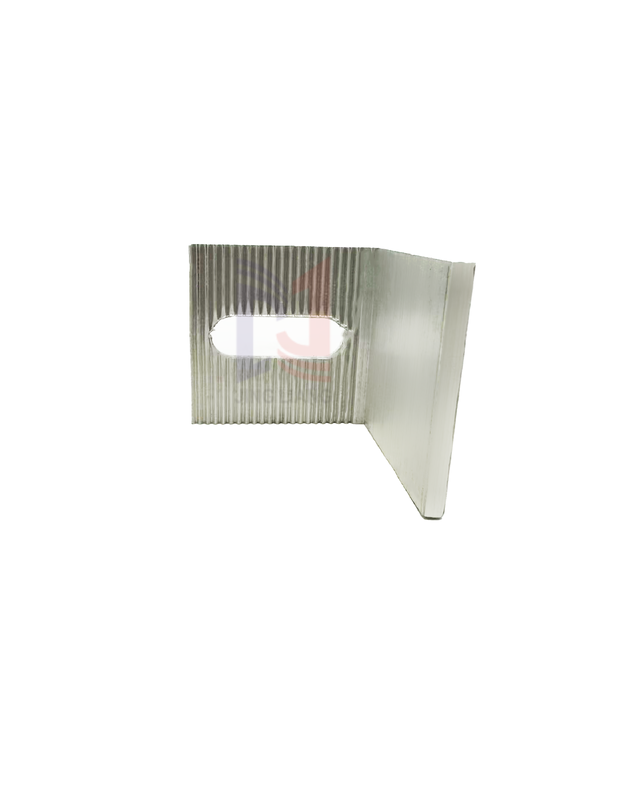

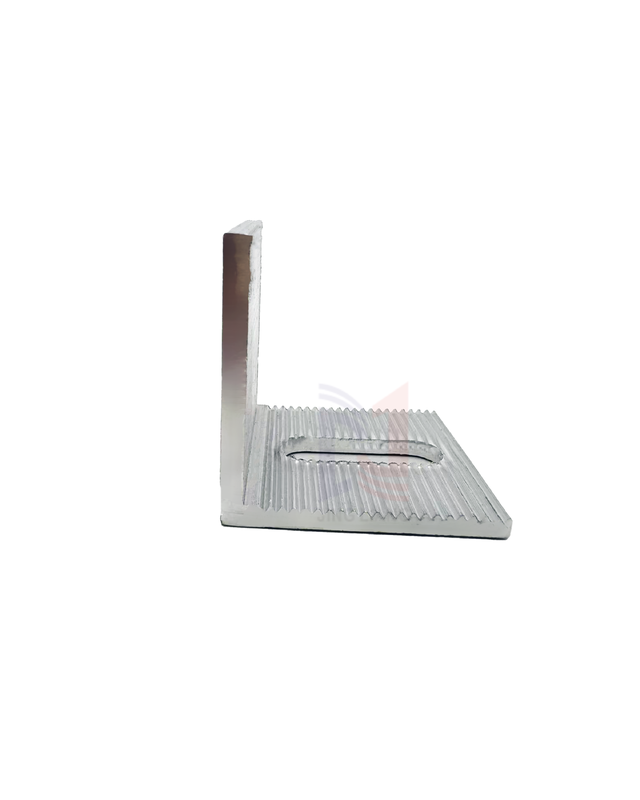

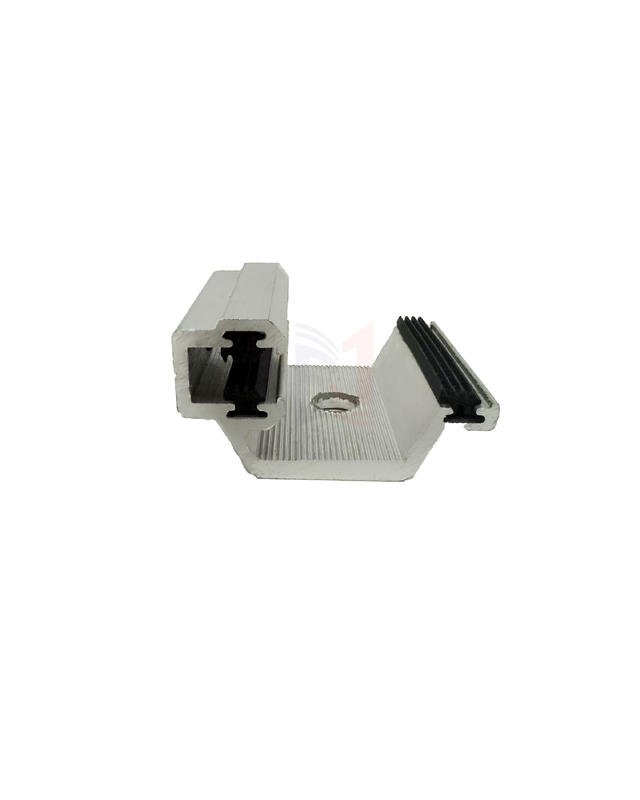

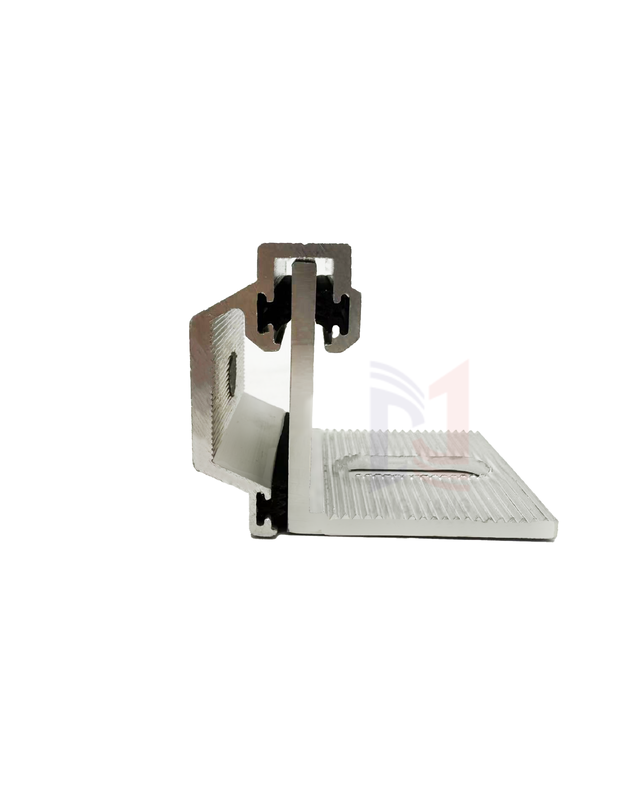

Anti-corrosion Customized Facade Joint for Facade Support System

This facade joint is specifically designed for 18mm facade support systems as a connection component, commonly referred to as the T18-type aluminum alloy terracotta clip in the industry (also part of the SE-type ear/composite support system). The main body is formed by extruding 6063-T6 aluminum alloy and undergoes anodized surface treatment, paired with EPDM rubber shock-absorbing strips, serving as the core load-bearing component of the terracotta support system.

Product Features

Lightweight and High-Strength: Aluminum alloy has low density and light weight, effectively reducing the overall load of the facade. With a tensile strength of ≥240MPa and flexible buffering provided by rubber strips, it can absorb stress caused by thermal expansion and contraction or seismic displacement, preventing ceramic panels from cracking or falling off.
Corrosion-Resistant and Long-Lasting: The anodized aluminum alloy surface, paired with aging-resistant EPDM strip, exhibits strong resistance to acids, alkalis, salt spray, and UV rays. Maintenance-free and suitable for harsh environments such as coastal areas and highly polluted zones.

Applications

High-rise / super high-rise terracotta exterior facade (office buildings, hotels, commercial complexes, cultural venues, etc.)
Exterior facades of public buildings and exterior wall decorations of new constructions
Decoration works for indoor lobbies, corridors, and feature walls

Technical Support & Services

Our Cladding Support Systems come with comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements. Contact us for more information about our technical support services.

Packaging & Shipping

Products are carefully packaged in custom-made, environmentally conscious materials designed to prevent damage during transit. We partner with reliable shipping companies and offer multiple transportation options including ground, air, and sea freight to accommodate your specific project requirements and timelines.
